Define Slab Contours
- • Slab outline, openings, recesses
- • Generate base reinforcement and additional reinforcement as usual
SBeXpress Module T
SBexpress - BAMTEC
The BAMTEC module streamlines carpet reinforcement design, automates production-ready outputs, and integrates fully with AutoCAD.
3-Step Workflow

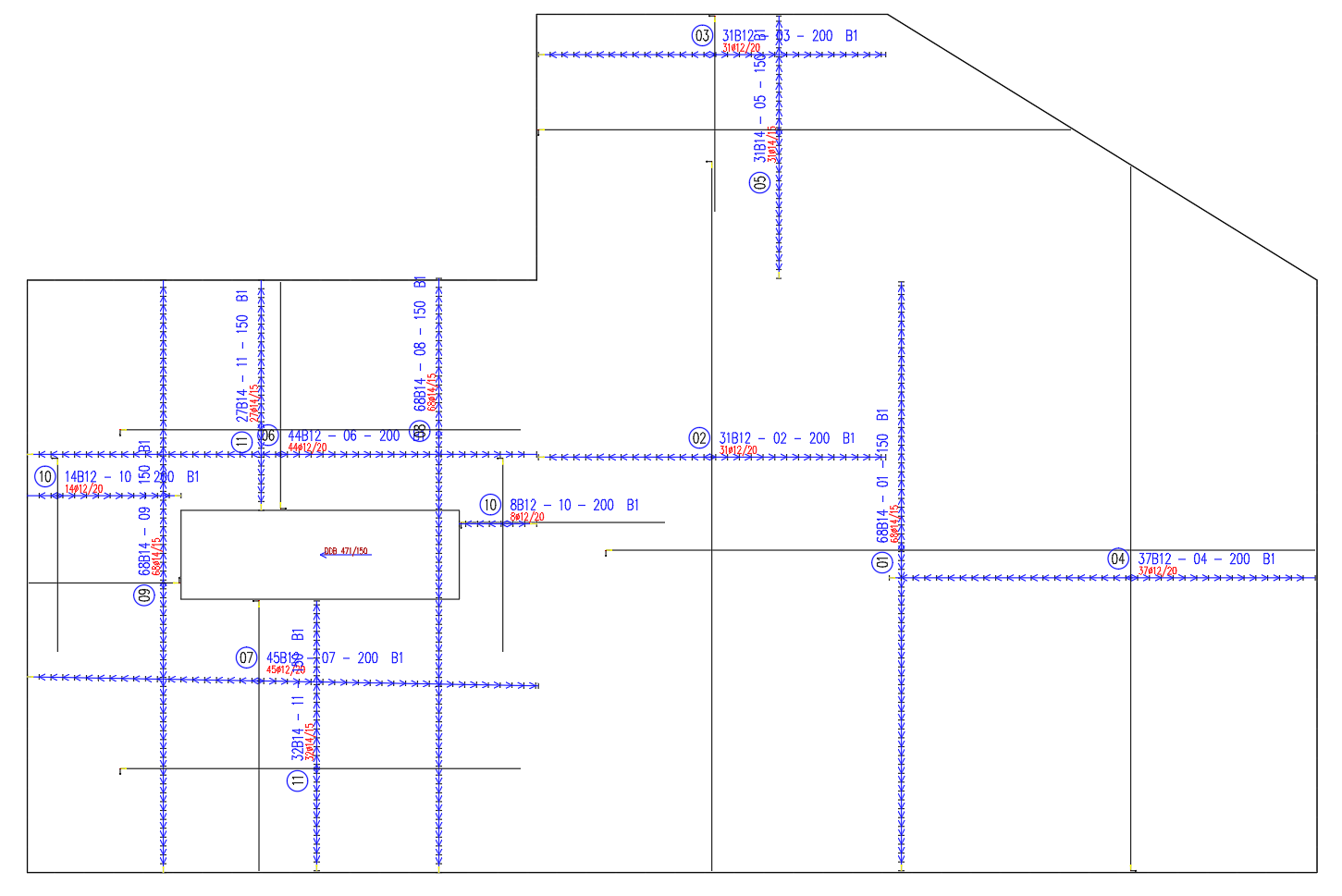

Base reinforcement layout
2
Define Carpet Contours
- • Manually or automatically generate based on cuttings and overlaps

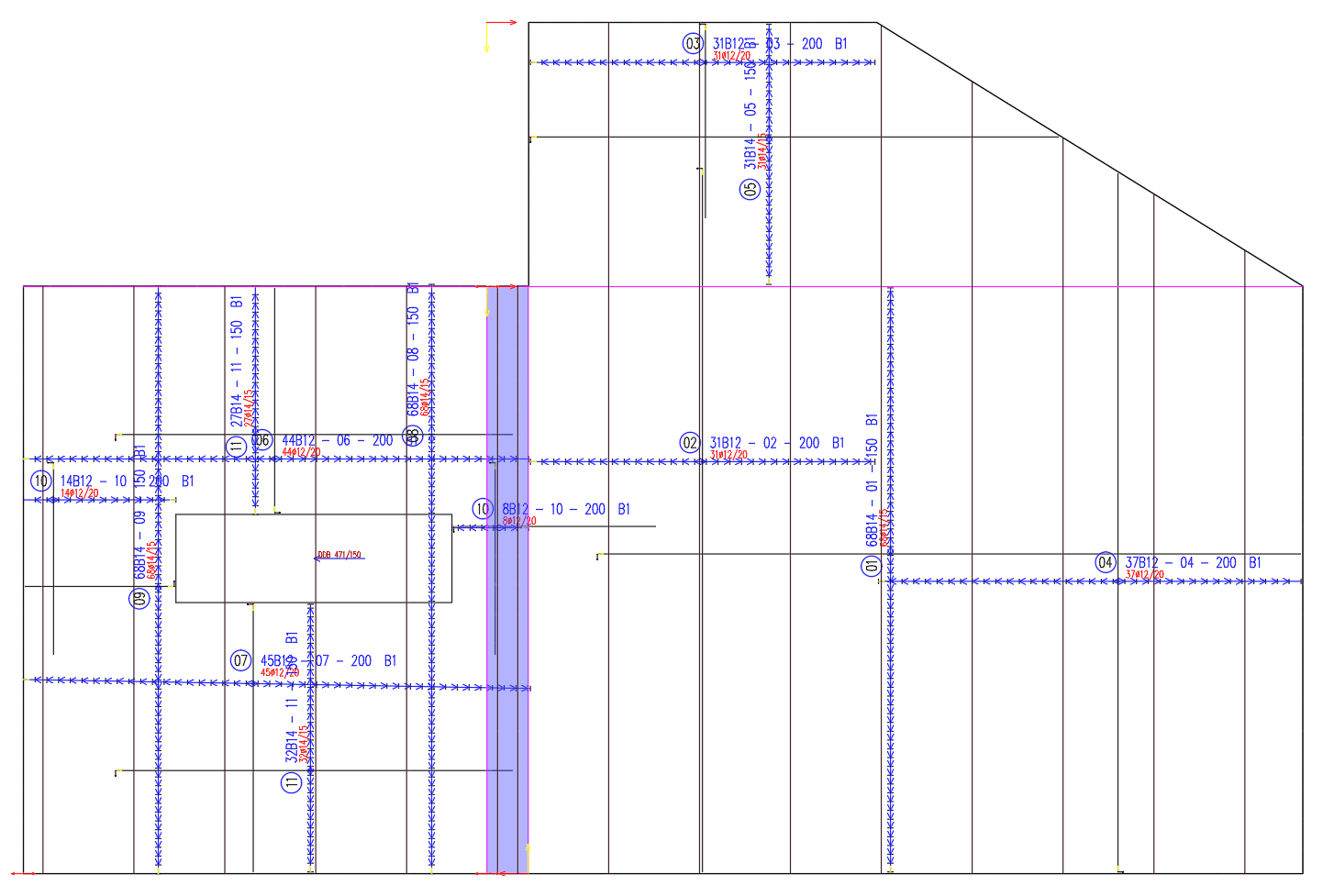

Cuttings and overlap zones
3
Generate Carpets
- • Convert traditional reinforcement into carpet layout
- • Automatic slab decomposition into carpets
- • Compose carpets based on carpet contours and punched-out reinforcement
- • Fix production issues: bar spacing, single-strap bars, bar ends
- • Lock or manually bind bars if needed

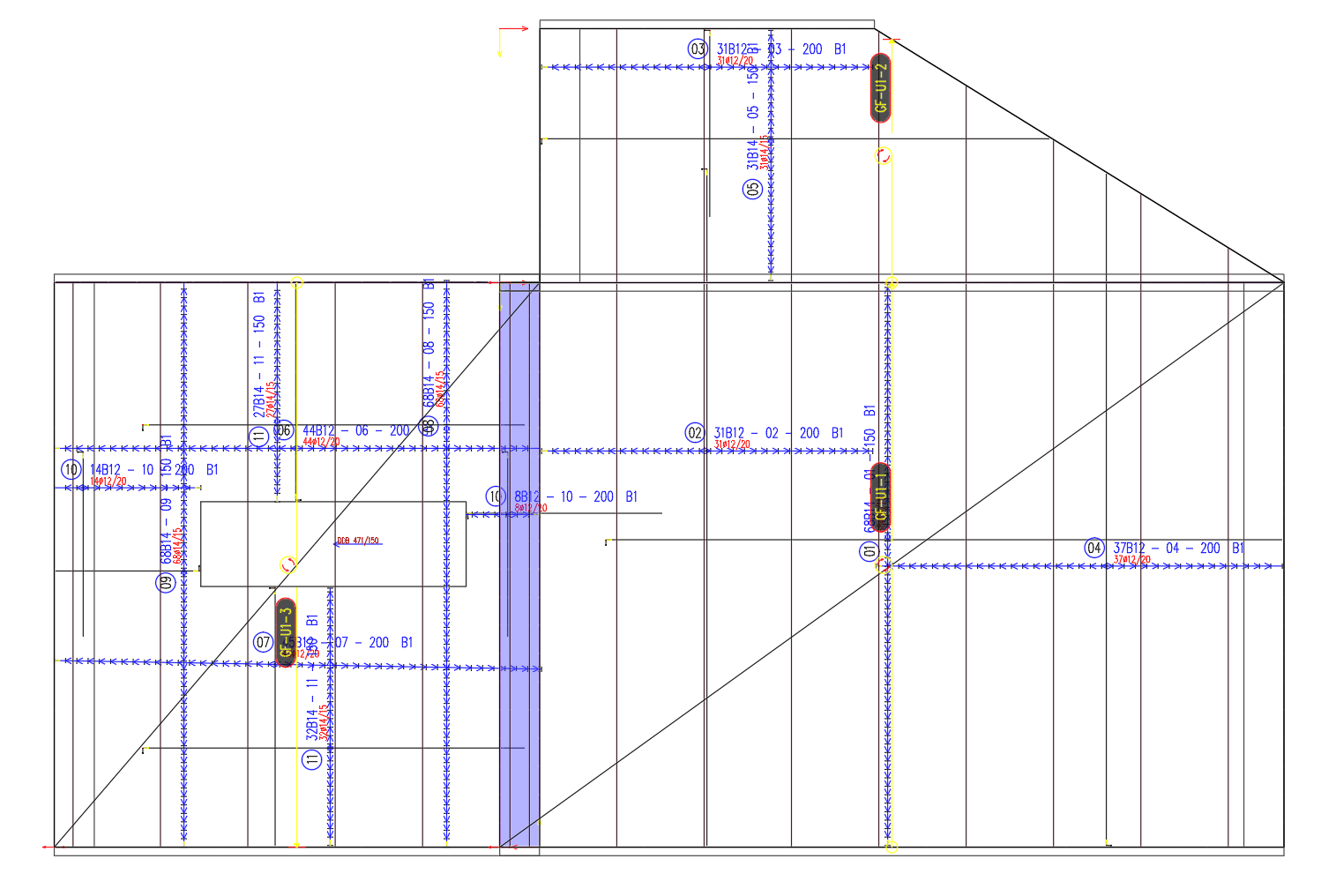

Composed carpets
Key Features
CAD Integration

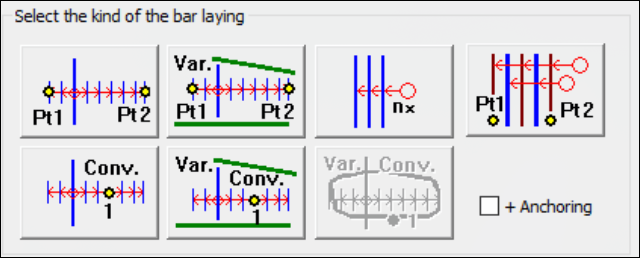

Bar laying
- • Simple, intuitive usage; most design objects derived from AutoCAD polylines
- • Simple AutoCAD commands work for complex reinforcement and formwork objects
- • Intelligent grip points and easy modification of slabs, carpets, and reinforcement
- • Any scale possible
- • Flexible, highly customizable visualization
- • Customizable labeling based on format strings
- • Design in model space; plansheets in paperspace with viewport-dependent content

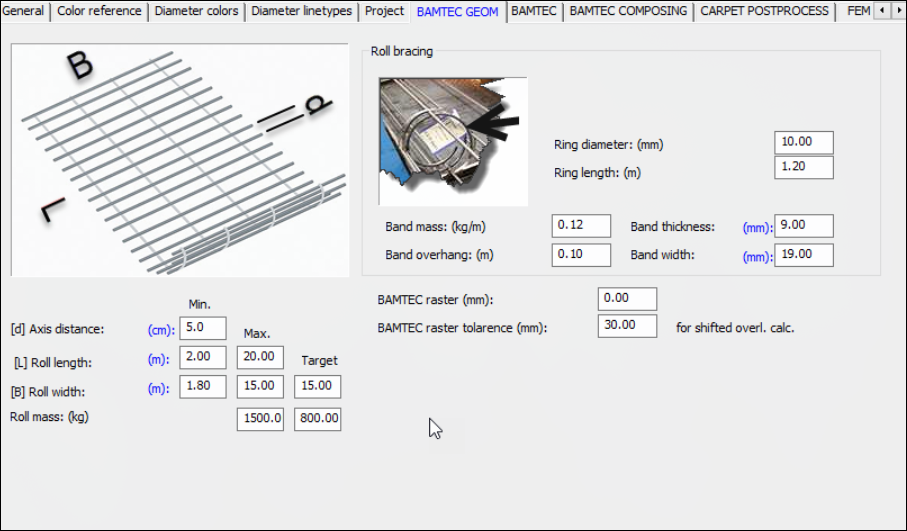

Settings
BAMTEC Features
- • Comprehensive settings, multi-slab support
- • Supports multiple standards and intelligent plan/label texts
- • No limitations on reinforcement or geometry
- • Displaced bar overlaps and building sections
- • Flexible schedules, filterable by reinforcement layer or building section
FEM Integration
- • ASF file import, merging, and export
- • Automatic additional reinforcement based on ASF files or DXF level lines

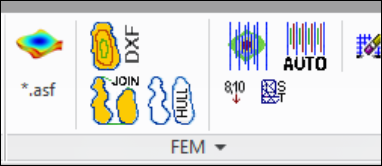

FEM
Production file
Reinforcement Features
- • Different base bar diameters and spacing per slab
- • Automatic base reinforcement generation per layer
- • Multiple methods for additional bar creation
- • Various editing functions
IFC Support
- • Import reinforcing bars from IFC (straight bars only)
- • Export carpets

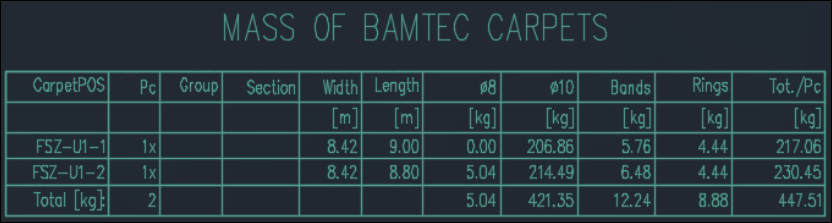

Mass of BAMTEC carpets
BAMTEC Redesign
- • PDF import and BVBS bar list (*.abs) import
- • Automatic suggestions for additional reinforcement based on imported data
- • Difference schedules (BVBS vs actual)
Carpet Features
- • Automatic creation of cuttings and overlaps based on user parameters
- • Automatic slab decomposition into carpets
- • Carpet composing based on contours and punched-out reinforcement
- • Post-processing to avoid production problems
- • Manual carpet locking and binding of additional bars
- • Automatic production file generation (*.tec, *.pxml) with viewer
- • Multi-page production plans in PDF
Decompose

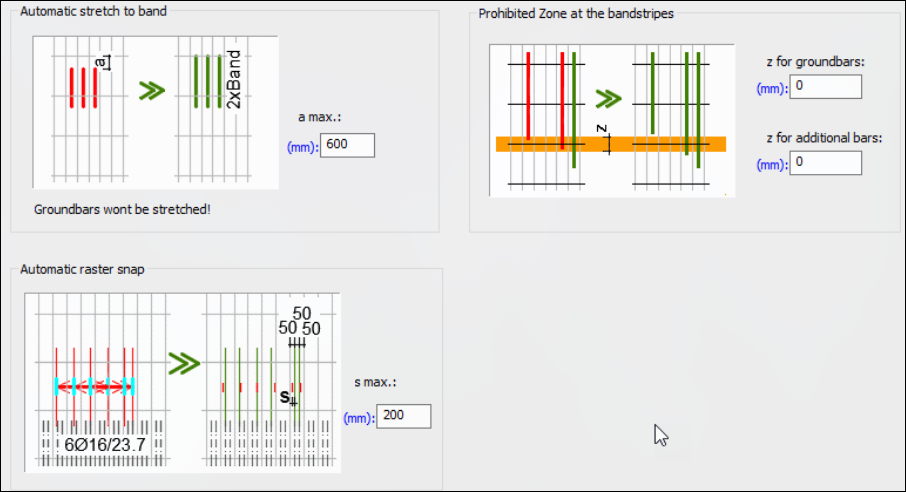

Auto correct
